Fact sheet

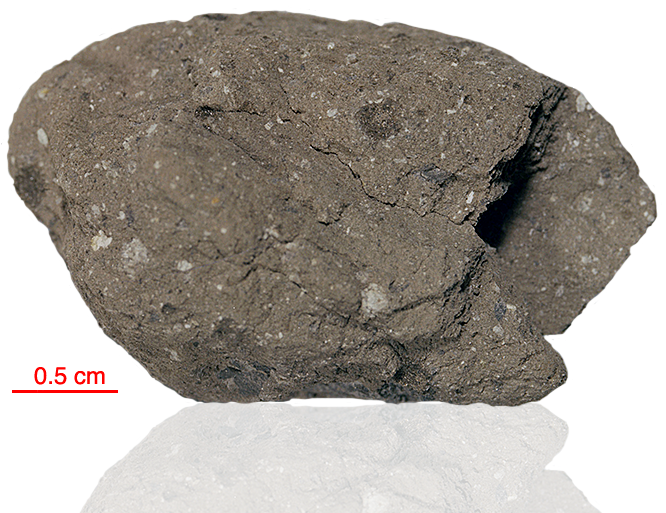

60637 is a rake sample from the area near the Lunar Module. It is a typical glass matrix regolith breccia and has been described as a fragmental breccia, although it has all the attributes of compacted lunar soil. Glass shards, lithic fragments and mineral fragments in a seriate grain size distribution are present. Rotation 1 shows a basaltic clast, a shocked plagioclase feldspar clast and a tiny spherical glass bead. A larger, but this time devitrified bead is visible in rotation 2. A further bead of metallic iron (containing sulphide inclusions) is visible in reflected light.

The sample weighed 8 grams before analysis and has not been dated.

Further details of this and other Apollo samples are here: http://curator.jsc.nasa.gov/lunar/

About this collection

The Apollo 16 landing site was in the hilly region around Descartes crater in the lunar highlands. The landing spot was chosen to allow the astronauts to gather geologically older lunar material (Descartes Formation and the Cayley Formation) than the samples obtained in the first four landings, which were in or near lunar maria.

The mission lasted 11.1 days, with a stay on the lunar surface of 71 hours. The crew were on the lunar surface for 20.2 hours during which they traversed approximately 27 kilometers and collected approximately 96 kilograms of samples.

Apollo 16 was launched on 16 April 1972.

Sample details

Collection: Apollo 16
Type
metamorphic
Rock-forming mineral
plagioclase
feldspar
pyroxene
Accessory minerals
metallic iron
