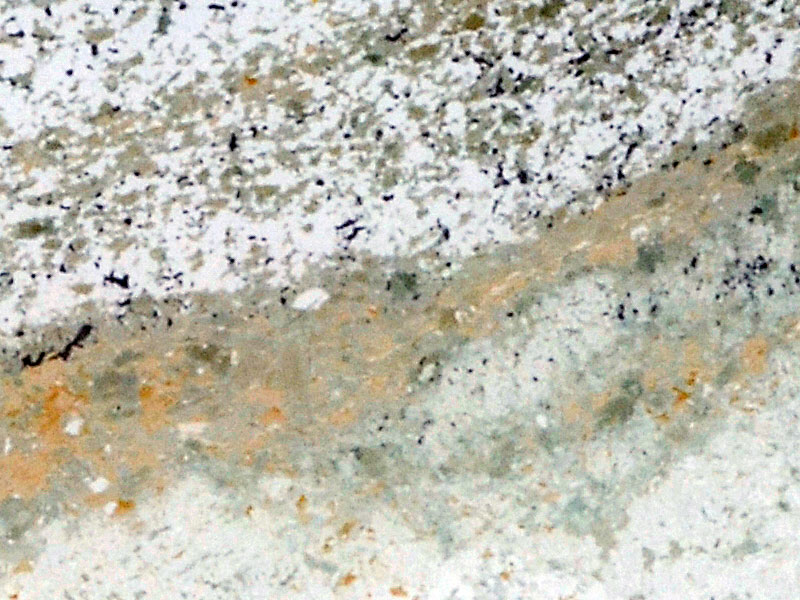

Click the microscope button to view a thin section for this sample.
Microscope
Click the microscope button to view a thin section for this sample.
Microscope
Click the object button to view an object rotation for this sample.
Object

Fact sheet

Calc silicate gneiss - Harris

This coarse-grained, calcite-rich, banded gneiss is from Sgarasta on South Harris in the Western Isles of Scotland. It was probably originally an altered volcanic rock in the Archean period. The rocks metamorphosed when subjected to high temperature and pressure during the Laxfordian orogeny, resulting in the coarse-grained rock.

The rock sample consists of bands rich in calcite, olivine (forsterite) and plagioclase. Also visible are bands rich in quartz, feldspar and amphibole. Calcite consistently shows deformation bands — often two sets of parallel bands are visible when viewed in plane polarised light and between crossed polars.

Additional images

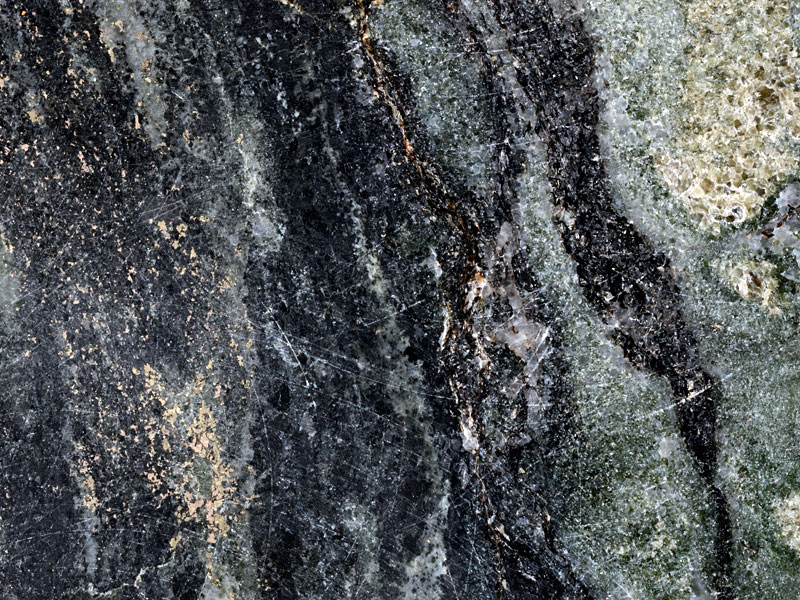

  • Detail showing a carbonate rich vein 2.8 cm

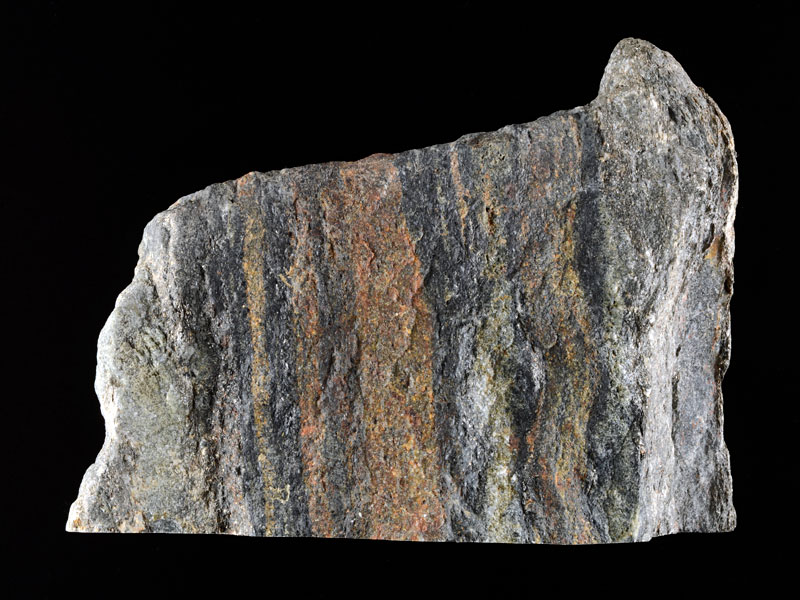

  • calc silicate gneiss - width 4.5 cm
  • calc silicate gneiss - width 14 cm
Map
57.834572, -7.024224
Description:
Bagh Steinigidh, Sgarasta, South Harris, Western Isles, Scotland
Precision:
Poor
About this collection

The United Kingdom Virtual Microscope (UKVM) collection consists of igneous, sedimentary and metamorphic rocks from around the UK.

It is intended as a teaching resource, helping to tell the story of the common rock types and how they form, and reflecting the history of the UK at the margins of the continent of Europe. The collection is a series of teaching sets, for example igneous rocks from the North Atlantic Igneous Province and SW England; high-temperature metamorphic rocks from Scotland and low-temperature metamorphic rocks from Wales; and sedimentary rocks, including English limestones and sandstones.

Sample details

Type
metamorphic
Category
calc silicate
Rock-forming mineral
calcite
