SW11 - Fine sandstone
Click the microscope button to view a thin section for this sample.
Click the microscope button to view a thin section for this sample.

Fact sheet

SW11 - Fine sandstone

Fine-grained Silurian sandstone., collected from just beneath the basal Carboniferous conglomerate in Brewin's Cutting in a similar location to sample SW1. This sedimentary rock is of Silurian age, around 420-417 million years old.

At this time, this region lay just south of the equator in a shallow, tropical sea. This fine sandstone was laid down in this shallow sea, made up of mineral grains eroded off nearby landmasses. Shortly after deposition, the area was uplifted by tectonic movements and the sediments were exposed to the air. Evidence for this in the outcrop is reddening of the sandstone in places, where the ferrous iron in the rock (greenish) was oxidised to ferric iron (reddish) by subaerial exposure. The Silurian rocks were exposed and eroded for around 100 million years before being submerged again, when the coarse Carboniferous conglomerate was deposited on top.

The irregular surface between the top of the Silurian strata and the base of the Carboniferous conglomerate is an example of an angular unconformity: a time gap in the sedimentary column where strata are missing. These gaps generally mark episodes of uplift and mountain building.

In thin section, the rock is fine-grained and brown in colour, with numerous discontinuous, undulating, darker laminae of finer material that probably indicate sedimentary layering - they may represent clay drapes on coarser sand. Grainsize variation in the sandy portions hint at grading, but as the beds are indistinct it is difficult to trace individual units. Thin, irregular dark brown lines cutting across the sedimentary lamination are seams of insoluble iron oxyhydroxides.

At higher magnifications, the following detrital mineral grains can be seen: elongate, clear laths of muscovite mica; stubbier green grains of chlorite; a few brown grains of biotite mica; colourless, subangular to subrounded grains of quartz and some feldspar; black (opaque) grains of various shapes, which may be iron oxides or perhaps organic debris. The fuzzy, grey-brown groundmass is likely a mixture of clay minerals.
In contrast to sample SW1, muscovite laths are very poorly aligned with the sedimentary lamination. This variation in orientation may reflect the slightly higher energy of deposition conditions compared to SW1, resulting in a more random arrangement of mica flakes in the sediment.

This sample was collected as part of the 'Macro to Micro' project.

Additional images

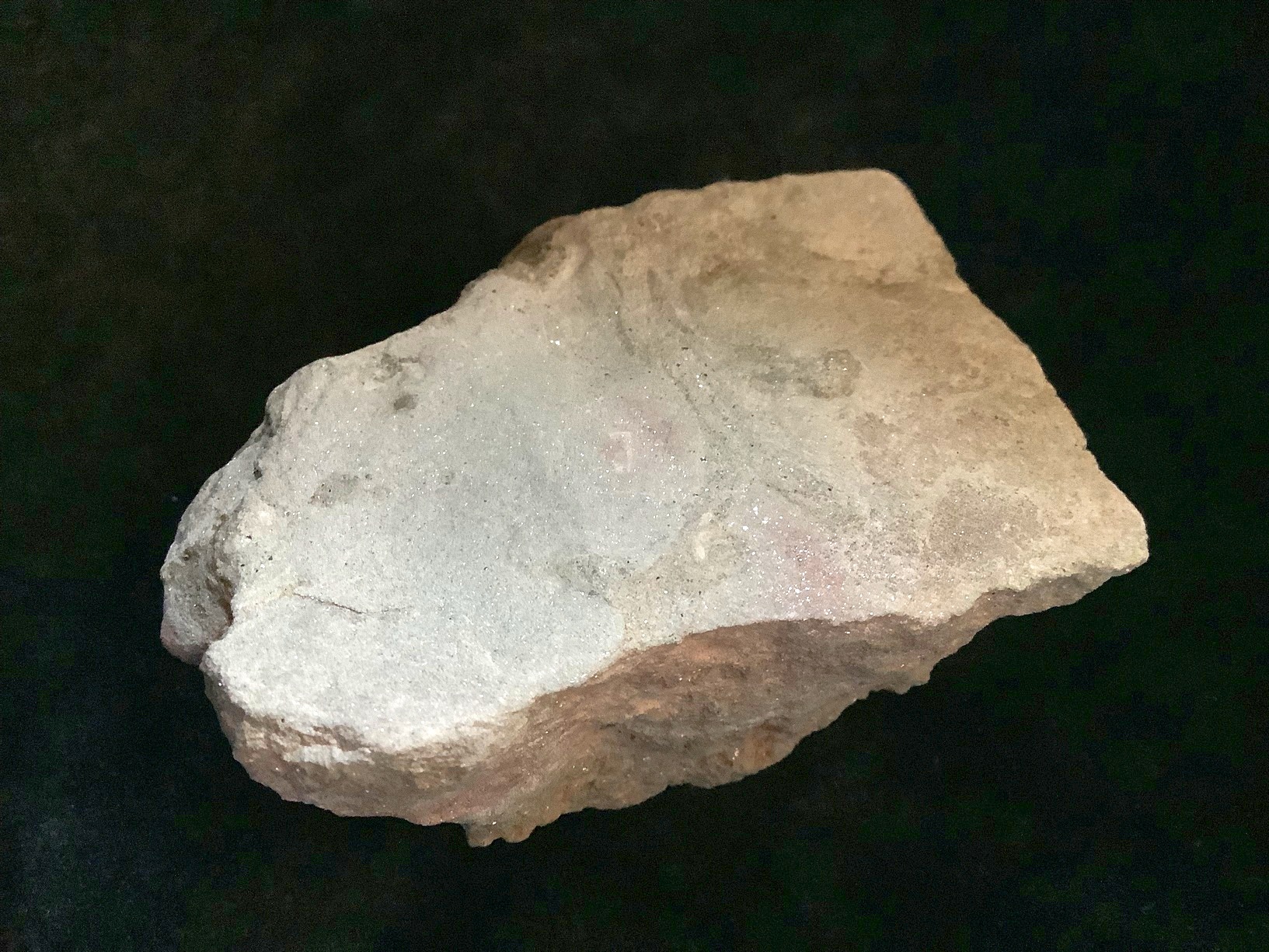

  • Hand specimen of siltstone on black background
52.486818, -2.094579
Exposures on canalside just east of bridge over canal by Highbridge Steps.
