SW15 - Sandstone 20 cm from microgabbro
Click the microscope button to view a thin section for this sample.
Click the microscope button to view a thin section for this sample.

Fact sheet

SW15 - Sandstone 20 cm from microgabbro

Medium grey sandstone, from the same unit as SW5, but collected approximately 20 cm from the contact with the microgabbro intrusion (SW4 and SW13), near Highbridge Road Steps. There is little sign in the field of contact metamorphism ('baking') of the sandstone by heat from the microgabbro intrusion.

The sandstones were deposited in a low-lying, deltaic environment when the region lay near the equator. Flattened fossilised tree-trunks have been found in Carboniferous rocks close by in Brewin's Cutting, indicating that the area was thickly forested.

In thin section, the rock has a typical fragmentary, detrital texture; there are no clear signs of contact metamorphism. Weak colour variation defines clear bedding layers that are oriented vertically, across the short axis of the thin section. Colourless quartz grains are mainly subrounded to subangular, but a few highly rounded grains are also visible. Feldspars are also present, generally with dusty alteration. There is much brown material: some appears to be biotite mica, variably altered, as it shows high birefringence. Much of the fuzzy dark brown matter along grain boundaries is probably a mixture of clays and iron oxide or similar insoluble material. Uncommon, small clear laths are of muscovite mica. Rare grains under crossed polars are finely polycrystalline, made up of numerous much smaller grains.

A different type of grain occurs sporadically throughout the section. These are pale brown to almost clear, elongate, typically gently undulating laths, or shorter fragments. Many appear laminated or fibrous. Elongate grains tend to align subparallel to the bedding. Like the grain highlighted in sample SW1, these grains are isotropic. Might they be fragments of shells from the brachiopod Lingula?

This sample was collected as part of the 'Macro to Micro' project.

Additional images

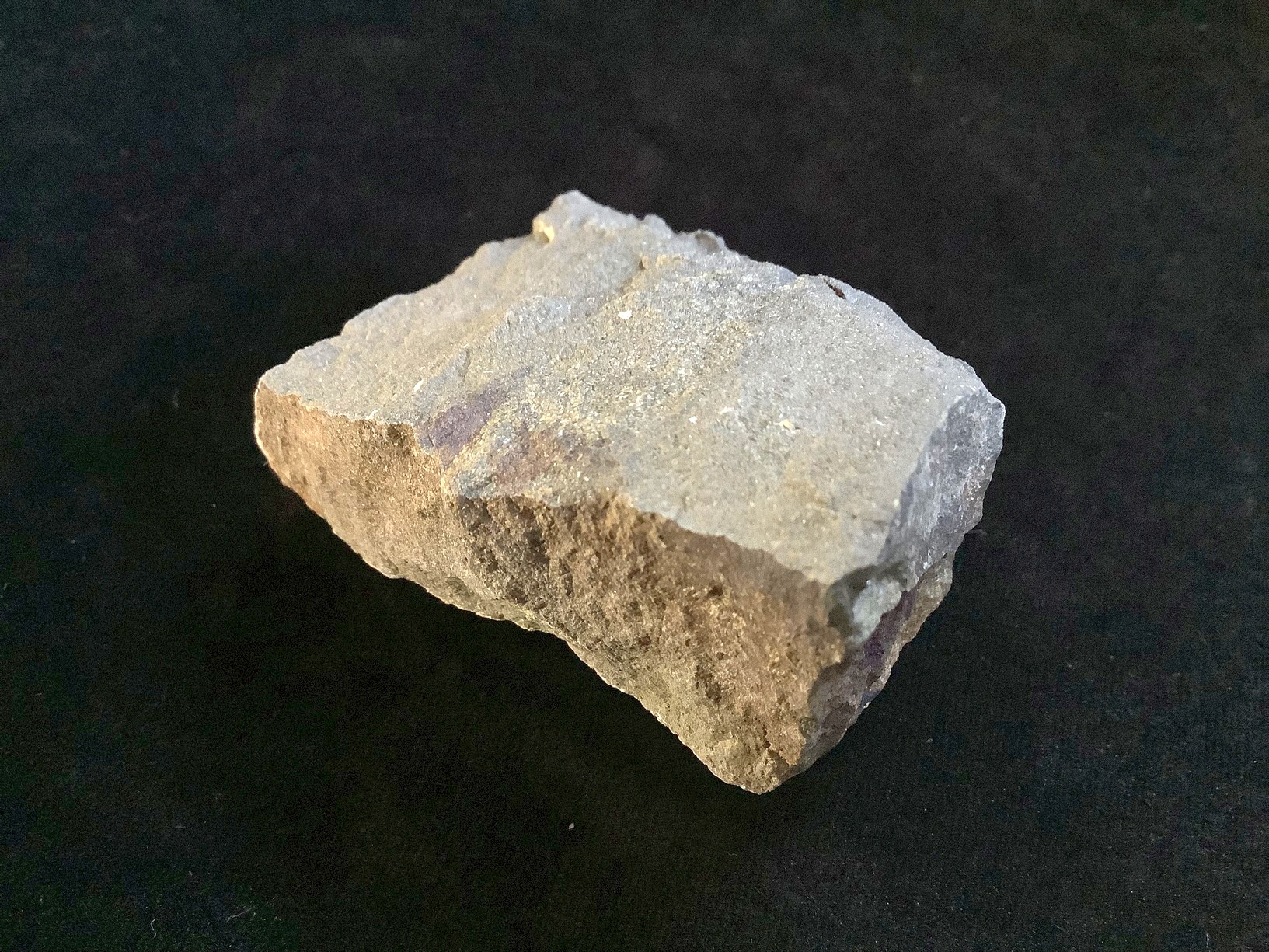

  • Hand specimen of sandstone on black background
52.486602, -2.095533
Exposures just west of Highbridge Steps
