Tourmaline Aplite (#501)

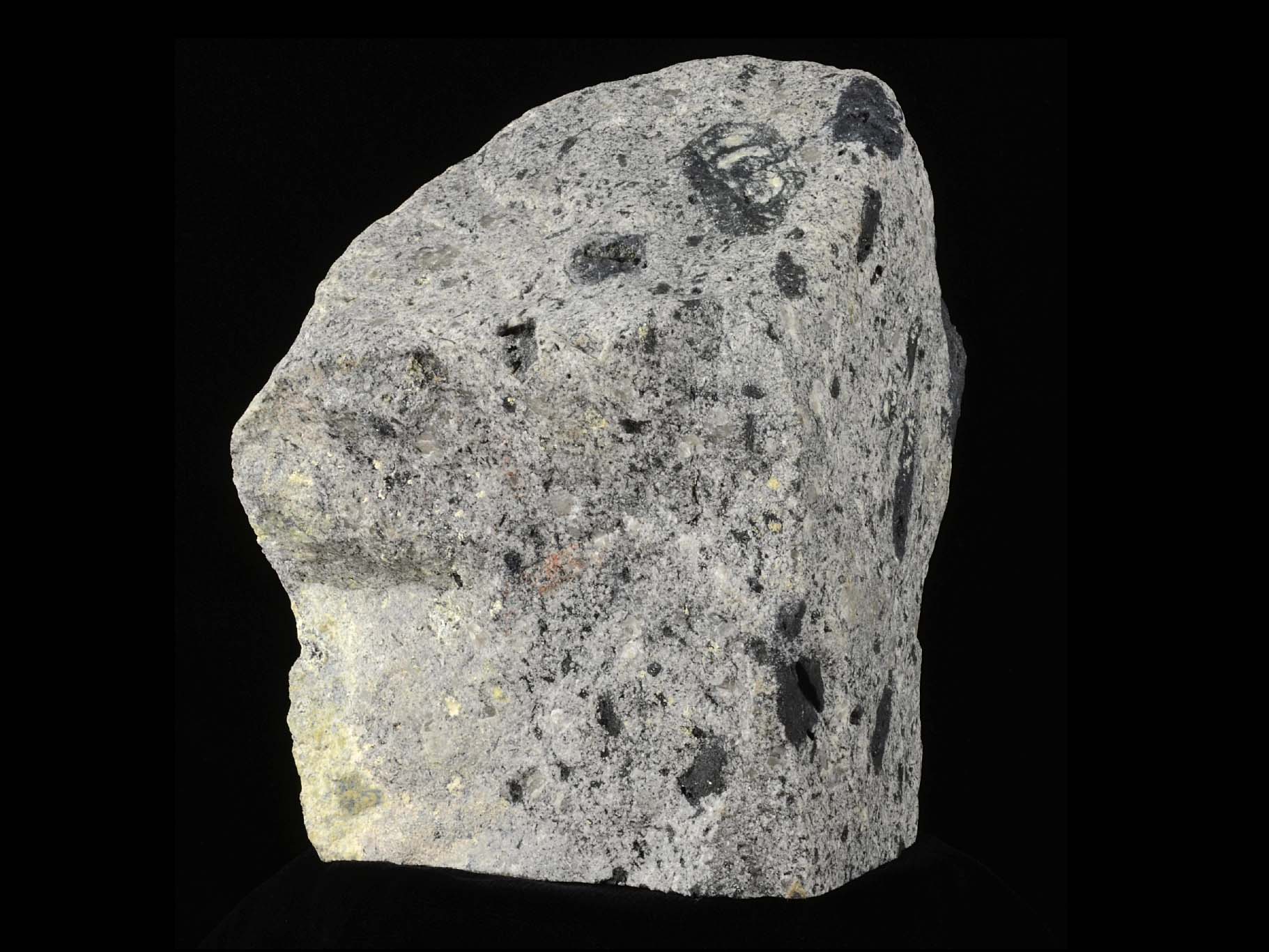

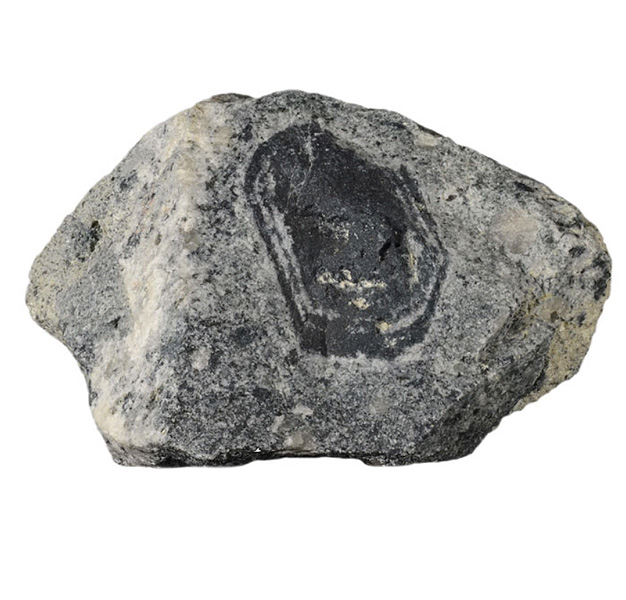

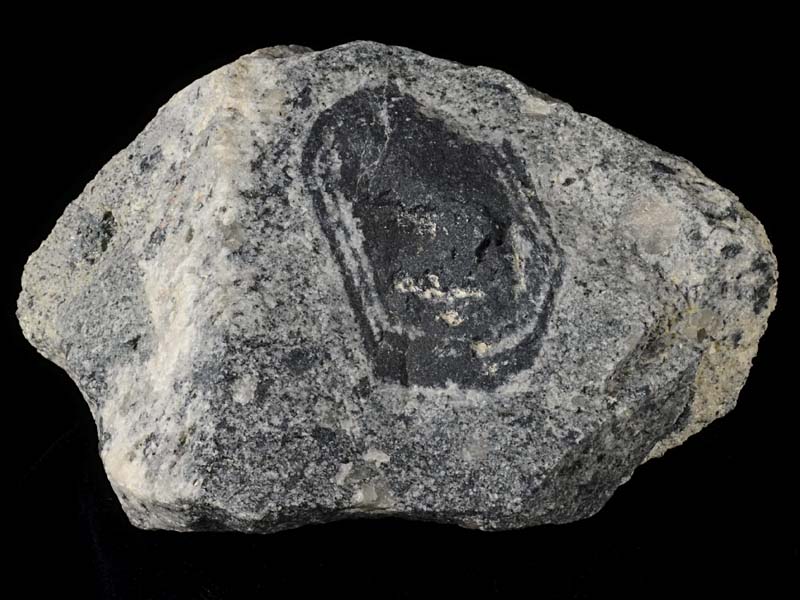

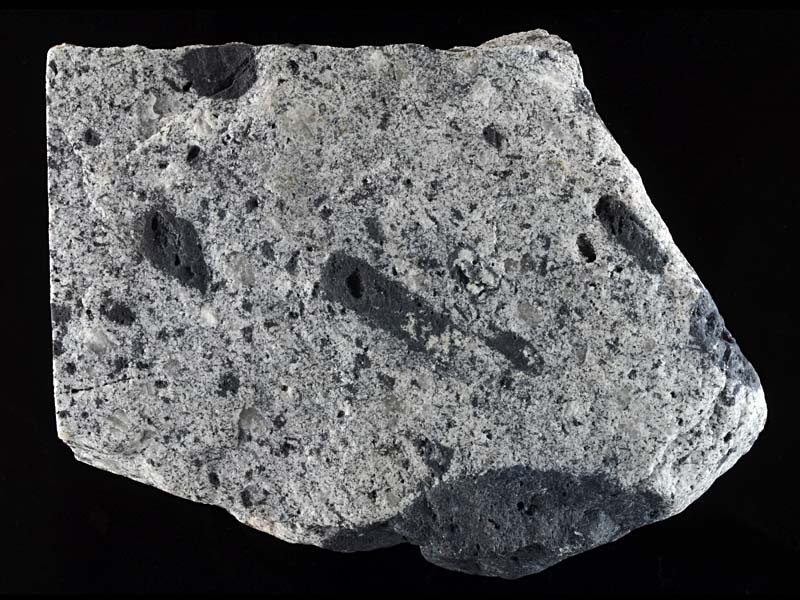

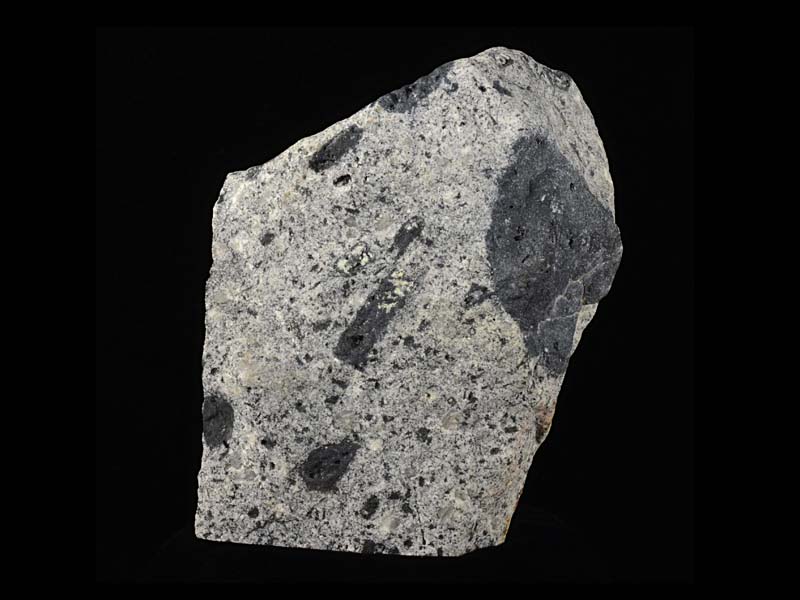

This unusual rock type shows the remarkable replacative capability of boron-rich magmatic fluids. Original white orthoclase feldspar phenocrysts have been totally replaced by black tourmaline. Note the original zoning of the orthoclase that is visible in hand specimen.

Additional images
  • width 7 cm
  • width 17 cm
  • width 15 cm
  • width 17 cm
Map
50.364313, -4.819736
Description:
Wheal Martyn china clay pit, Carthew, near St Austell
Precision:
Moderate
About this collection

A case study of the St Austell granite complex in Cornwall, England, illustrating the range of rocks associated with a granite intrusion. The earliest part of the complex is a siderophyllite (biotite) granite containing muscovite and tourmaline typical of a SW England granite, with many primary magmatic features.

This early intrusion was followed by the intrusion of an evolved volatile-rich magma which was the driving force behind a series of intense hydrothermal processes as volatiles escaped from this magma and helped to establish an extensive alteration halo (aureole). Boron, fluorine and lithium (as well as water) played major roles in the formation of the second intrusion and in the associated hydrothermal processes. Igneous activity lasted around 18 million years from 282 Ma (siderophyllite granite) to 265 Ma (fluorite granite).



Sample details

Collection: St Austell Granite
Type
igneous
Rock-forming mineral
quartz
tourmaline
